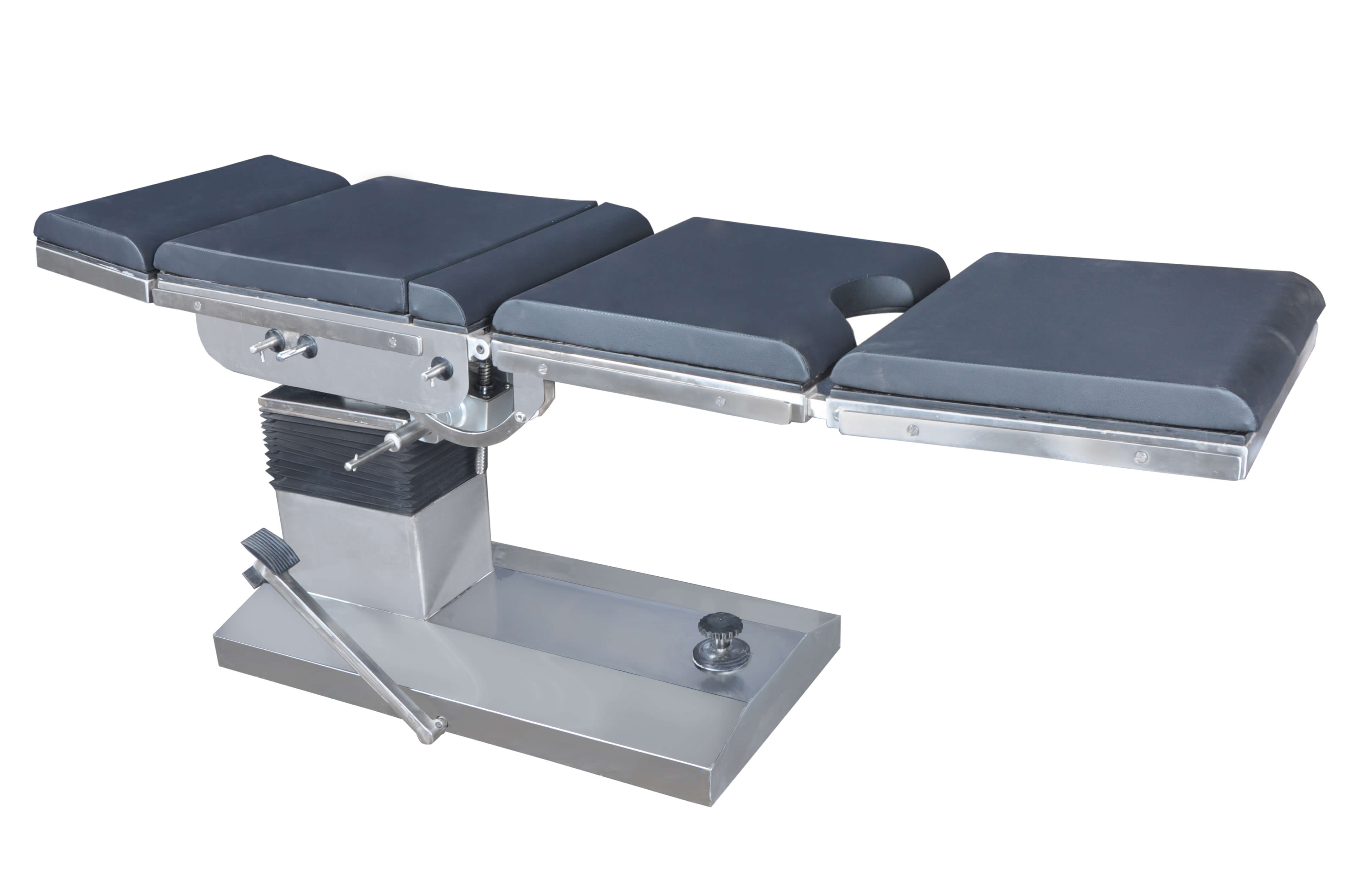

The five section radio-translucent table top is equipped with removable, antistatic mattress. All the positions are realized by a mechanical driver.  Radio-translucent top provides easy convenience for x-ray procedures. Precision made concealed hydraulic system with a single lever action hydraulic life controlled by a foot pedal.

Inbuilt kidney bridge and large perinea cut out for drainage.

Manual floor locking system.

Technical Specifications:

Dimension 1925mmx533mm+-10mm
Adjustable height 750mm to 1000mm+-10mm
Trendelenburg 30’+-3′
Reverse trendelenburg 30’+-3′
Lateral tilting 20’bothside +-2′
Lifting position 250mm+-12mm
Flex position 90
Reflex position 200′
Head plate 20′ up 90’down
